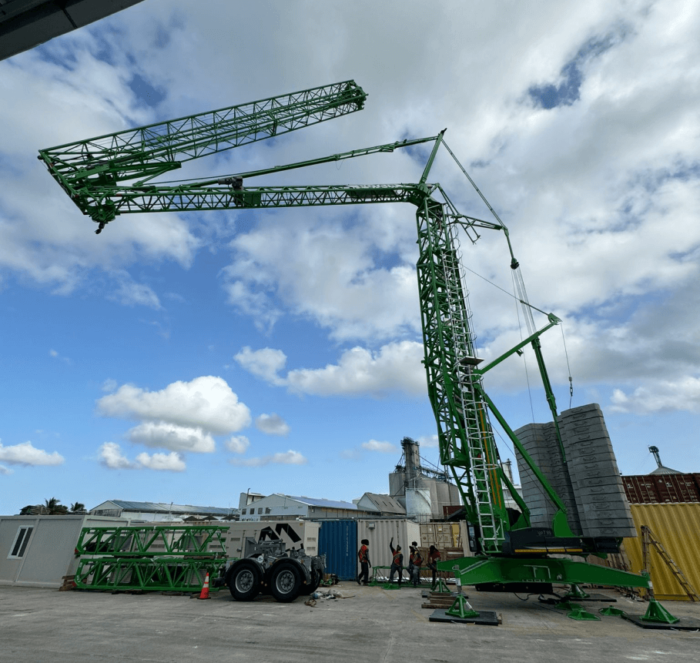

IGO T99
<strong>Optimized Performance. Maximized Profits.</strong> The Igo T 99 is a versatile telescopic mast self-erecting crane ideal for construction sites with tight jobsite constraints. This crane with high lifting capacity 6 t (6.6 USt), a reach of 48 m (157 ft) and a height under hook in horizontal jib position up to 38.5 m (126 ft), will optimize all construction work on the most demanding sites and if your jobsite space is limited, then you need this Crane. Its innovative movement technology enables the crane to unfold even in narrow spaces close to buildings. The unfolding of the jib requires less ground area because it deploys from the top after the base of the crane is erected. <strong>Icing on the Cake</strong> The Operator Control Functionality allows for more optimized control capabilities. This remote control can be programmed with the three driving profiles so operators can customize to their preference. High-precision hoisting speeds can also be selected directly from the remote control. <ul> <li><strong>Easy Installation and Transport on Constricted Job Sites</strong> Deliver and set up in a relatively small space thanks to innovative IGO T 99 engineering and technologies.</li> <li>Compact 4.5 x 4.5 m footprint and slewing radius 3 m or 3.3 m</li> <li>Quick and easy leveling thanks to an adjustable system of 5 locking positions</li> <li>4 m maximum height for transport for 80 km/h axle and even less for 25 km/h axle</li> <li>Compatible with already existing Igo and Igo T transport axles</li> </ul> -

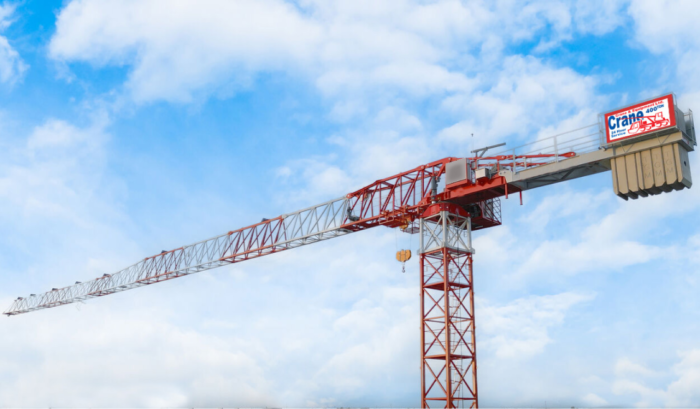

The TGM GRT 52 (5 Metric Tons) Tower Crane
A tower crane is a modern make of the balance crane most commonly used on urban construction sites. When this crane is fixed to the ground during the construction period, it offers the best combination of lifting capacity and height. It is attached using a substantial concrete base and anchored by large bolts which can be removed easily after construction. They are used mostly in the construction of tall, multi-story buildings. The best thing about tower cranes is that they surpass the lifting and loading capacity of all other kinds of cranes. Their height capacity too cannot be matched by the other cranes. Tower cranes are incredibly stable and can endure tough tasks. <strong>Crane Max. Capacity:</strong> 6.000 KG <strong>Boom JIB Capacity:</strong> 1.250 KG <strong>Tower Element</strong> 1.20 X 1.20 <strong>Working Radius:</strong> 52 m <strong>Lifting Height:</strong> 24m (additional height on demand) <strong>Hoist and Forward, Backward Systems Schneider</strong> <strong>Slewing Systems TGM</strong> <strong>Hook Rope Diameter:</strong> 12 MM X 350 Meters Nuflex <strong>Trolley Rope:</strong> 120 meters Long / 70 Meters Short <strong>Breastband:</strong> 50 Meters
Additional Details
Tower cranes are essential for construction projects that require increased reach and exceptional manoeuvrability, particularly in high-rise buildings and large-scale developments. With their towering height and extended jib, these cranes provide unmatched lifting capacity at significant heights, making them perfect for moving heavy materials across wide areas. Tower cranes are engineered to rotate 360 degrees, giving operators the flexibility to position loads precisely where needed, even in crowded urban environments. Their ability to lift heavy loads to great heights makes them indispensable for constructing tall structures while maintaining safety and efficiency.
