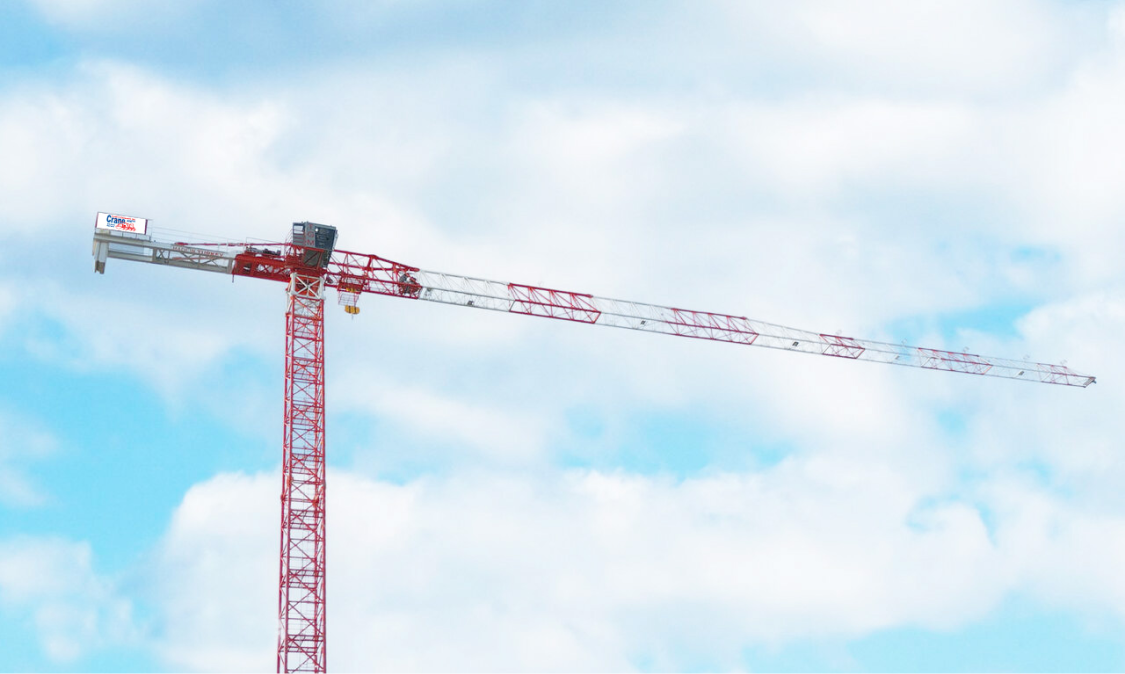

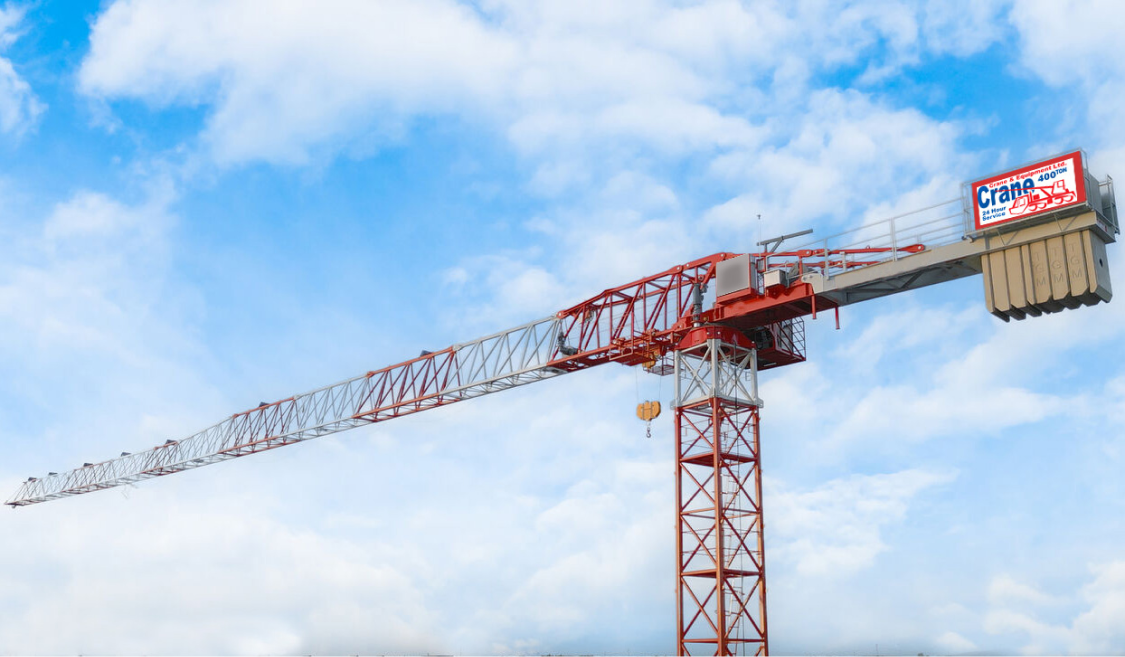

The TGM GRT 52 (5 Metric Tons) Tower Crane
A tower crane is a modern make of the balance crane most commonly used on urban construction sites. When this crane is fixed to the ground during the construction period, it offers the best combination of lifting capacity and height. It is attached using a substantial concrete base and anchored by large bolts which can be removed easily after construction. They are used mostly in the construction of tall, multi-story buildings. The best thing about tower cranes is that they surpass the lifting and loading capacity of all other kinds of cranes. Their height capacity too cannot be matched by the other cranes. Tower cranes are incredibly stable and can endure tough tasks.
Crane Max. Capacity: 6.000 KG
Boom JIB Capacity: 1.250 KG
Tower Element 1.20 X 1.20
Working Radius: 52 m
Lifting Height: 24m (additional height on demand)
Hoist and Forward, Backward Systems Schneider
Slewing Systems TGM
Hook Rope Diameter: 12 MM X 350 Meters Nuflex
Trolley Rope: 120 meters Long / 70 Meters Short
Breastband: 50 Meters
